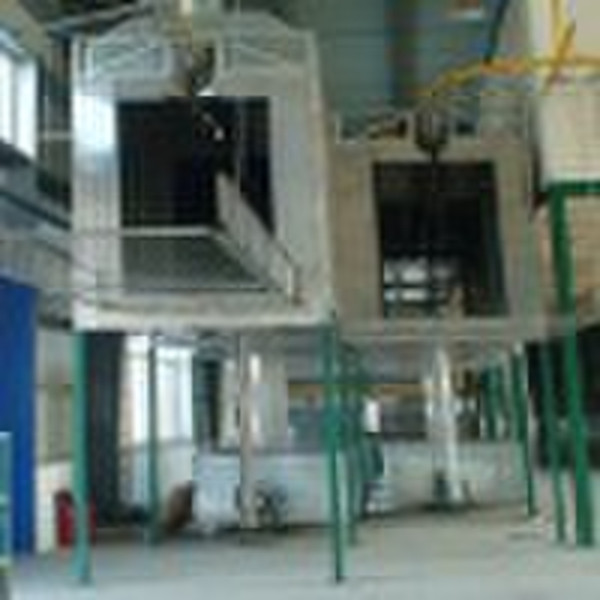

pretreatment line

pretreatmentline can clean and chemically treat the surface of the aluminum coil.After the aluminum coil being passed,lubricant,Anti-oxidation oil and some metal elements would be left on the surface of it.Adopingthe Geman and Japanese technology,Chromium-free chemicals are used on the surface of the aluminum panel to from tiny holes for better adhesive force in order to binding the paint and the aluminum panel tightly.The production line is a environment friendly system in strict conformity with the national Enviroment standard. Techinal Data Equipment configuration dimension(L*W*H) 34*5.3*25.3*2M Equipment Weight About 42T Raw material of the products 3003(1100)H18 aluminum coil Thickness and width of aluminum coil 0.10-0.6800-1600mm Internal diameter of the cylinder of aluminum coil φ150-505mm Maximum diameter of aluminum coil φ1400mm Speed of production line 10-50m/min Rate of Degrease ≥99.9% Chemical Conversion film 50-1000mg/m2 Electric power 3φ-380V-50HZ,52Kw Consumption of compressed air Air pressure 5-6kg/ cm2 dosage5-10m³/H` Volume of water consumption Tap water 3-5m³/H pure water 2-3m³/H
